PSI10K LV pure sine wave solar pv 240v 10kw split phase inverter 48v can support 120V/240V split phase output which is the main power standard used in North American countries including US, Canada, Mexico, Costa Rica, Ecuador, Panama, and Venezuela markets.
Split phase system is defined as having 2 x 120V hot wires (normally denoted as L1 and L2 and each hot wire is 120V in relation to the neutral wire), 1 neutral wire, and a ground wire. By using the two opposite phase hot wires together 240V is created between L1 and L2.
10kw 240v split phase inverter 48v parallel by two units 5000W, it can simultaneously manage inputs from both solar panels and a battery bank, charging batteries with either solar panels or the electricity grid.

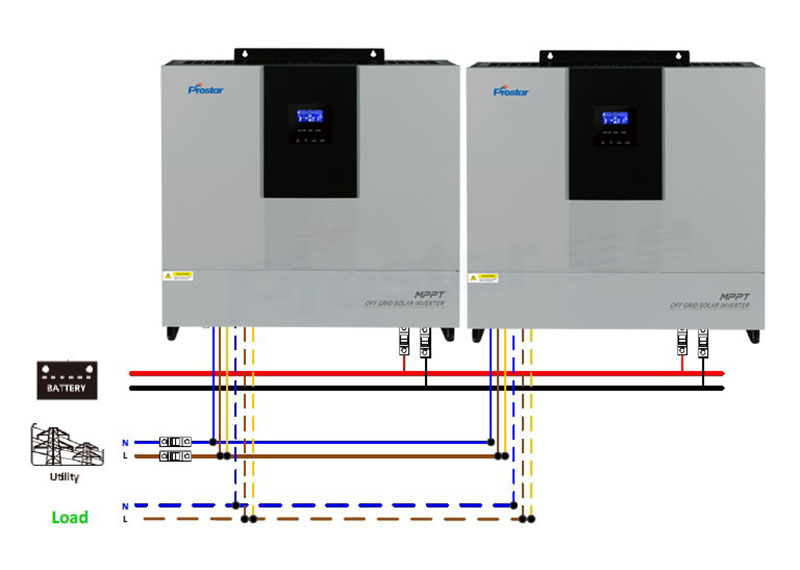

When the inverter is used in parallel for single phase application, it need to select "2A0" in program 28. L1 to L2 output voltage is 0V and L to N output voltage is 120Vac.
10KW Split Phase Inverter Features
- Split Phase output (120V/240V), suitable for Mexico, Costa Rica, Ecuador, Panama, and Venezuela markets
- Pure sine wave OUTPUT
- Built-in 2 strings of MPPT solar charge controller
- Configurable AC / Solar input priority via LCD setting
- 50Hz & 60Hz support
- Programmable parameters
- Max up to 60A utility charging
- Adjustable bulk & float charging voltage
- Support either grid or generator input
- Genset starter dry contact
- Auto restart while AC is recovering
- Ideal for Off-Grid or Grid-backup application
- Overload and short circuit protection
- LCD Display + LED indicators
- Cold start function
- RS232/USB communication interface
- Stackable — parallel up to 3 units for single phase, split phase and three phase applications
Split Phase Inverter Solar System
The following illustration shows basic application of this split phase inverter. It also includes the following devices to complete the whole running system:
- Generator or Utility Power
- Solar Module
This inverter can power all kinds of applications at home or in the office, including motor-type applications such as tube light, fan, refrigerator, washing machine and air conditioner.
Inverter Overview
AC INPUT/OUTPUT Connection
When the phase angle between L1 and L2 is 0°
In this case a single leg of the split-phase AC source is used (neutral and 120 Vac live wires). The inverter is fed with this AC source and supplies 120 Vac loads.
When the phase angle between L1 and L2 is 120°
When the phase angle between L1 and L2 is 180°
Inverter Display Panel
Split Phase Inverter Packing
10kw split phase inverter Specification
| Model | PSI-10K LV |
| RATED POWER | 10000VA / 10000W |
| Dimension DxWxH (mm) | 130x623x610 |
| Net Weight (kgs) | 30*2 |
| INPUT | |
| Rated INPUT Voltage | 110VAC / 120VAC (L-N or L1-N-L2) |
| Selectable Voltage Range | 95VAC – 140VAC (For Personal Computers) |
| 65VAC – 140VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 110VAC / 120VAC (L-N or L1-N-L2) |
| Efficiency (Peak) | 90% – 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 64 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 4000W * 2 * 2 |
| MPPT Range @ Operating Voltage | 60VDC ~ 110VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 80A *2 * 2 |
| Maximum AC Charge Current | 60A* 2 |
| Maximum Charge Current | 220A* 2 |
| MPPT Maximum Efficiency | 98% |
| OPERATING ENVIRONMENT | |
| Communication Interface | USB/RS232/Dry Contact |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Product specifications are subject to change without further notice. | |
