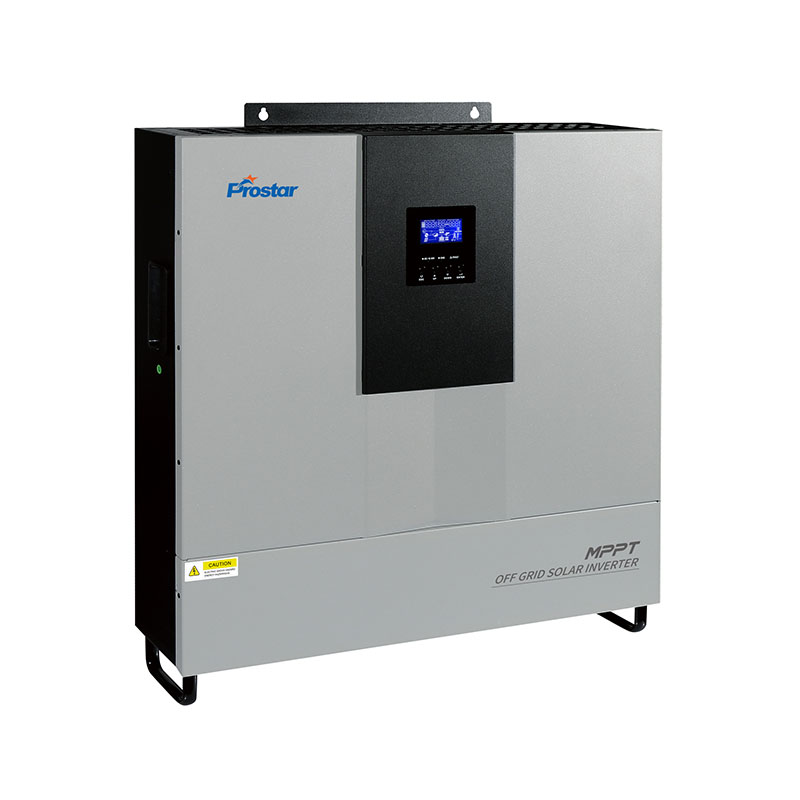

PSI5K LV 48v off grid solar power 5000w 240 volt split phase inverter can support 120V/240V split phase output which is the main power standard used in North American countries including US, Canada, Mexico, Costa Rica, Ecuador, Panama, and Venezuela markets.
Split phase system is defined as having 2 x 120V hot wires (normally denoted as L1 and L2 and each hot wire is 120V in relation to the neutral wire), 1 neutral wire, and a ground wire. By using the two opposite phase hot wires together 240V is created between L1 and L2.
PSI5K LV 48v off grid solar power 5000w 240 volt split phase inverter with MPPT allow working in grid-connected or off-grid environments, and interfacing with multi-phase electrical sources and loads.
5000w 240 Volt Split Phase Inverter Features
- Split Phase output (120V/240V), suitable for Mexico, Costa Rica, Ecuador, Panama, and Venezuela markets
- Pure sine wave OUTPUT
- Built-in 2 strings of MPPT solar charge controller
- Configurable AC / Solar input priority via LCD setting
- 50Hz & 60Hz support
- Programmable parameters
- Max up to 60A utility charging
- Adjustable bulk & float charging voltage
- Support either grid or generator input
- Genset starter dry contact
- Auto restart while AC is recovering
- Ideal for Off-Grid or Grid-backup application
- Overload and short circuit protection
- LCD Display + LED indicators
- Cold start function
- RS232/USB communication interface
- Stackable — parallel up to 3 units for single phase, split phase and three phase applications
Split Phase Inverter Solar System
The following illustration shows basic application of this split phase inverter. It also includes the following devices to complete the whole running system:
- Generator or Utility Power
- Solar Module
This inverter can power all kinds of applications at home or in the office, including motor-type applications such as tube light, fan, refrigerator, washing machine and air conditioner.
Inverter Overview
AC INPUT/OUTPUT Connection
When the phase angle between L1 and L2 is 0°
In this case a single leg of the split-phase AC source is used (neutral and 120 Vac live wires). The inverter is fed with this AC source and supplies 120 Vac loads.
When the phase angle between L1 and L2 is 120°
When the phase angle between L1 and L2 is 180°
Inverter Display Panel
Split Phase Inverter Packing
5000w 240v Split Phase Inverter Specification
| Model | PSI-5K LV |
| Parallel Capability | Yes, 3 units |
| RATED POWER | 5000VA / 5000W |
| Dimension DxWxH (mm) | 130x623x610 |
| Net Weight (kgs) | 30 |
| INPUT | |
| Rated INPUT Voltage | 110VAC / 120VAC (L-N or L1-N-L2) |
| Selectable Voltage Range | 95VAC – 140VAC (For Personal Computers) |
| 65VAC – 140VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 110VAC / 120VAC (L-N or L1-N-L2) |
| Surge Power | 10KVA |
| Efficiency (Peak) | 90% – 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 64 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 4000W * 2 |
| MPPT Range @ Operating Voltage | 60VDC ~ 110VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 80A *2 |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 220A |
| MPPT Maximum Efficiency | 98% |
| OPERATING ENVIRONMENT | |
| Communication Interface | USB/RS232/Dry Contact |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Product specifications are subject to change without further notice. | |
