PST3K 24v 3000 watt solar inverter

PST3K 24v dc to ac pure sine wave 3000 watt solar inverter off grid is pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference.

The inverter is combining functions of inverter, pwm solar charger and battery charger to offer uninterruptible power supply. This inverter can power all kind of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator or air conditioner.

Pure sine wave 3000 watt solar inverter diverts solar power directly to your house loads or batteries as required, and converts stored dc energy in your batteries to ac electricity for use at night times.

Off grid 3000 Watt Solar Inverter Features

• Pure sine wave output

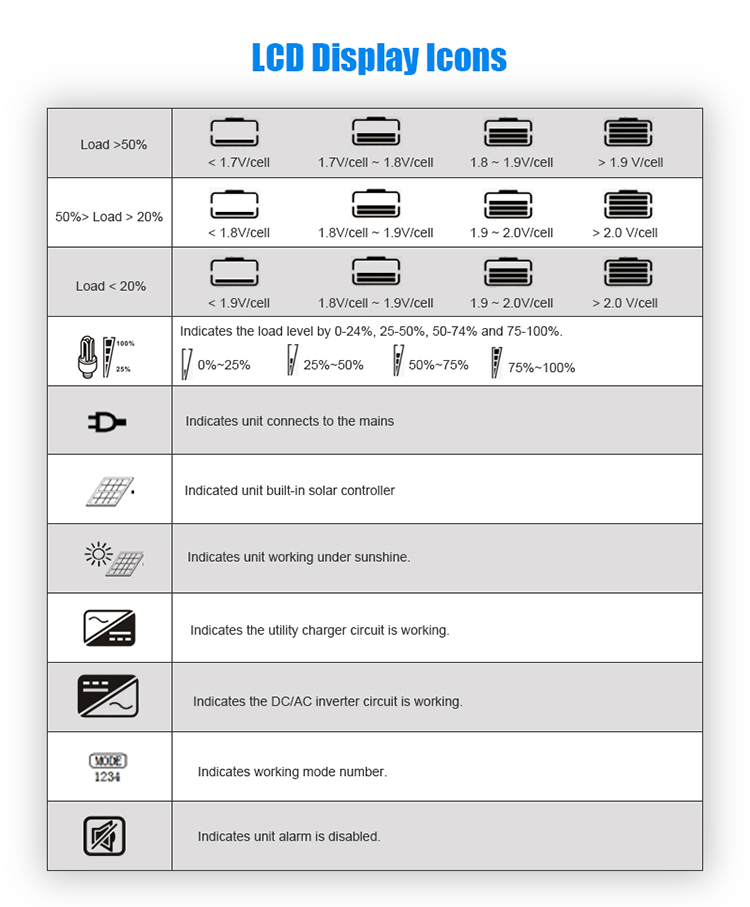

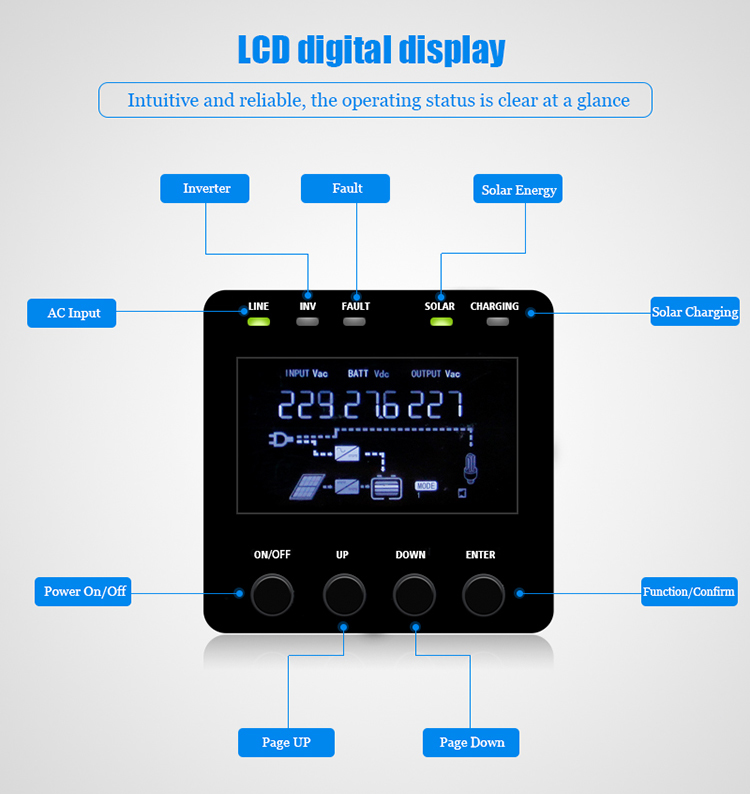

• Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
• Builtin PWM 60A solar charge controller
• New SUB working mode(Solar-Utility-Battery working mode)
• Overload, short circuit and Deep discharge protection
• Built-in isolated transformer
• Uninterruptible power supply in case of grid black-out
• Intelligent AC and PV complementary power supply function to extend the battery life

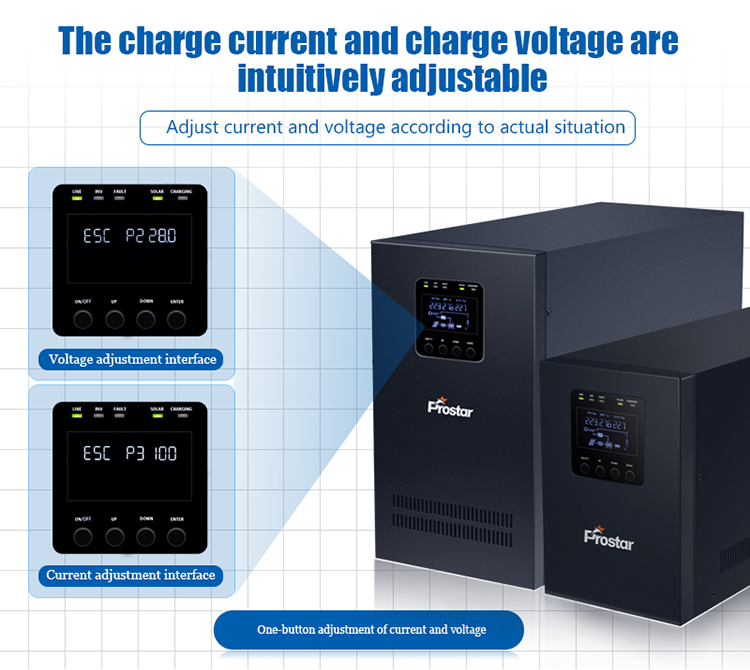

• Configurable battery charging current or voltage based on applications via LCD setting
• Cold start function(starting with only battery power and no AC source or PV modules attached)
• Compatible to generator

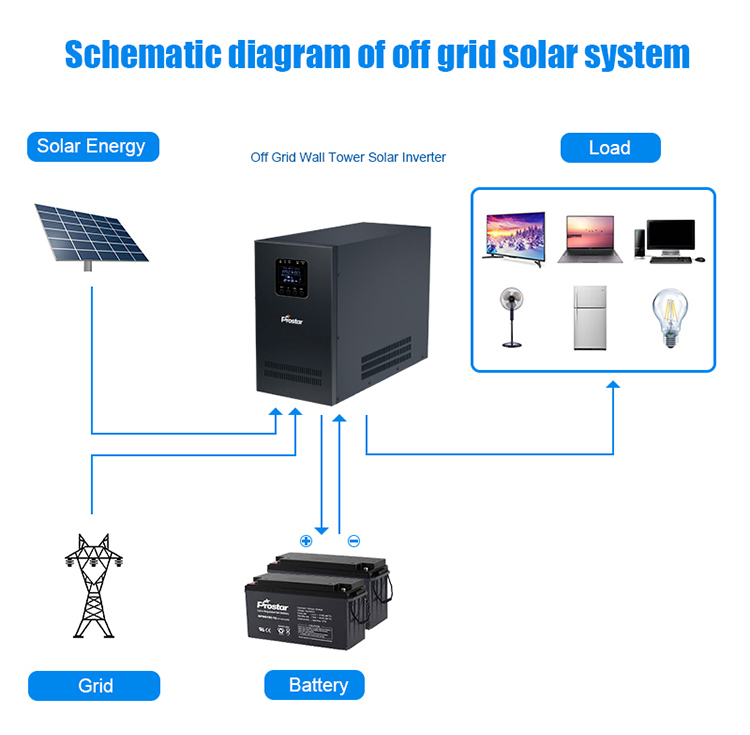

Solar System Structure

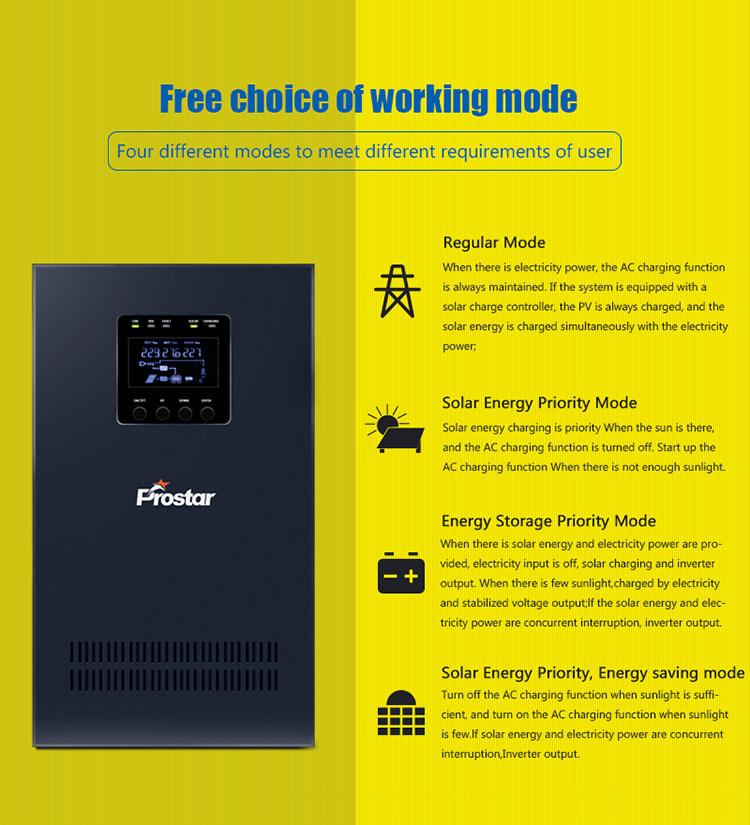

Inverter Working Modes Choice

There are 4 working modes for users to choose, which is best for its using:

• Regular mode
• Solar energy PRIORITY mode
• Energy storage PRIORITY mode
• Energy saving mode

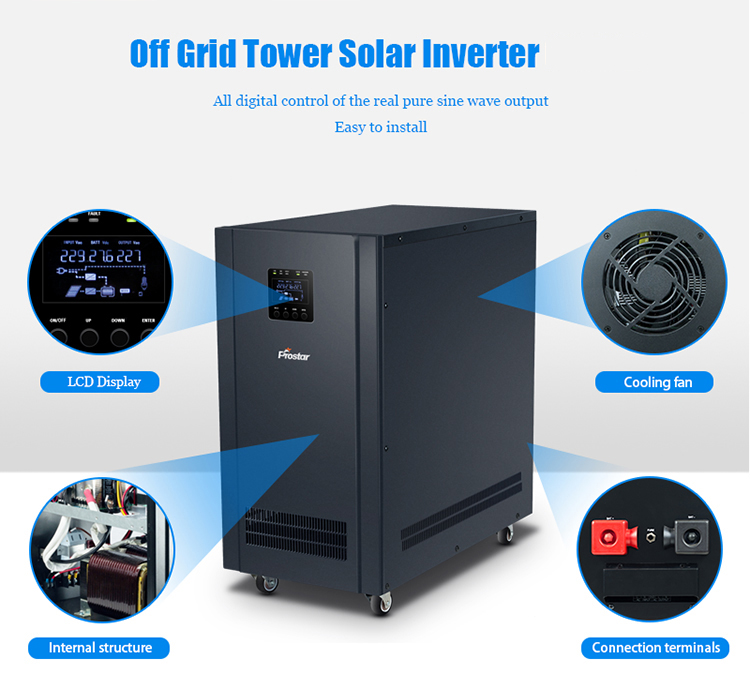

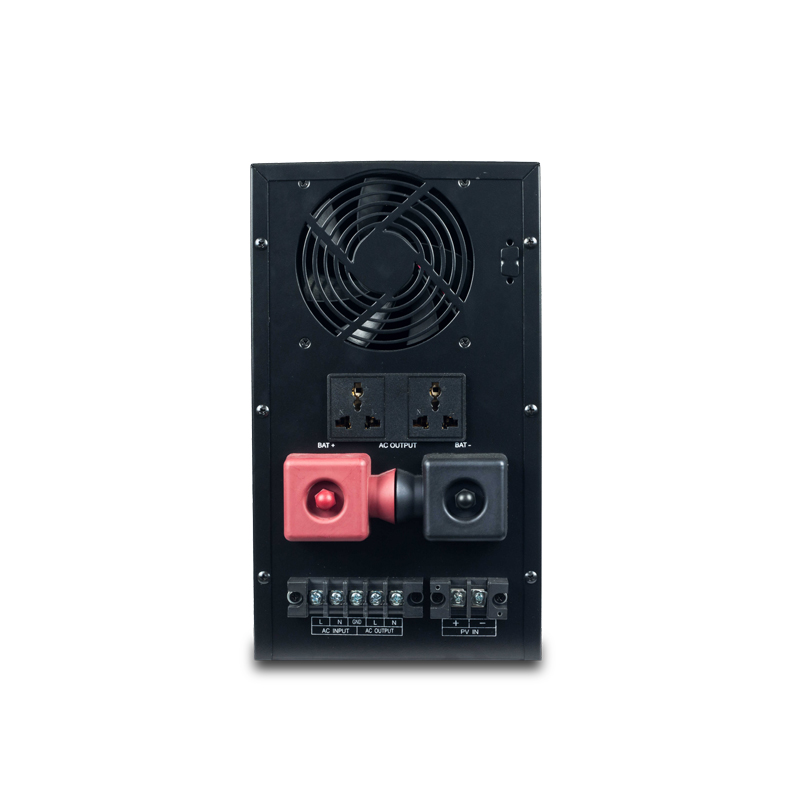

3000 Watt Solar Inverter Details

3000 watt solar inverter Specification

Model		PST3K-24
Rated Power		3000W
INPUT
Voltage Range		100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-25%)
Frequency Range		50/60 Hz±2.5Hz Auto
OUTPUT
AC Voltage Regulation		100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%）
Frequency		50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ）
Surge Power		9000W
Battery Efficiency		83%
AC Efficiency		93%
Transfer Time		8ms default, 4ms optional
Waveform		Pure Sinewave
BATTERY
Battery Voltage		24VDC
Floating Charge Voltage		27.2VDC
Overcharge Protection		30.0VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Power		1440W
PV Input Voltage Range		20VDC - 50VDC
Max. Solar Charge Current		60A
AC Charge Current		0A-40A Adjustable
PROTECTION
Battery Reversal		Optional
Output Short Circuit		AC mode:Jump fuse, Inverter mode: Shut down
Overload		Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
High AC Voltage		Turn off AC,turn to Inverter mode automatically
Low DC Voltage		Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
Over Temperature		Power Off
ENVIRONMENT
Humidity		15～93%（No condensation）
Temperature		-10℃ ~ 50℃
Altitude		≤3000m
Communication		USB,RS232, RS485,SNMP (Optional)
MECHANICAL SPECIFICATIONS
Dimension, DxWxH (mm)		472x190x330
Net Weight (Kgs/PC)		33.3
