Prostar PSM-5K VMIII off grid solar power pure sine wave 5000w inverter 48v is a powerful pure sine wave inverter suitable for connecting any appliances, motor, etc. It allows to work at 110% several minutes and double its power for 5 seconds for inductive loads and engine start thanks to its high power of overload.
Prostar PSM VMIII series is the third generation off-grid inverter with rich new functions. Its detachable LCD control module can be turned to remote panel. It’s also integrated with Bluetooth interface ready for mobile monitoring and supports USB on-the-go function to facilitate data upload/download. Battery independency design enhances this inverter to operate without battery connected.
Possibility of performing equalization in manual and automatic programming intervals from 1 to 90 days from the menu. It allows an equalization voltage of 54V, essential in lead acid batteries.
5000W Inverter Feautures
- Detechabel LCD control module with multiple communications
- Pure Sine Wave OUTPUT
- Integrated MPPT solar charger 80A
- Built-in bluethooth for mobile monitoring (android app is aviable)
- Supports USB On-the-go function
- Reserved communication port for BSM (RS485, CAN-BUS or RS232)
- Repleaceable fan design for ease fo maintenance
- Supply load from Grid or PV, even battery is not aviable
- Configurable AC/PV output usage timer and prioritization
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal cimputers
- Compatible to utility mains or generator input
- Auto restar while AC is recovering
- Smart battery charger design for optimized battery performance
- Removable LCD control module
- Cold start function
Inverter Overview
Remote Display Panel Installation
The LCD dispaly panel can be removable and installed in a remote site with an optional communication cable.
Connect LCD dispay panel to the off grid inverter with an optional RJ45 communication cable.
Bluetooth Connection
This inverter is built in Bluetooth technology. It allows wireless commnunication up to 6m to 7m in an open space.
LCD Display Shown

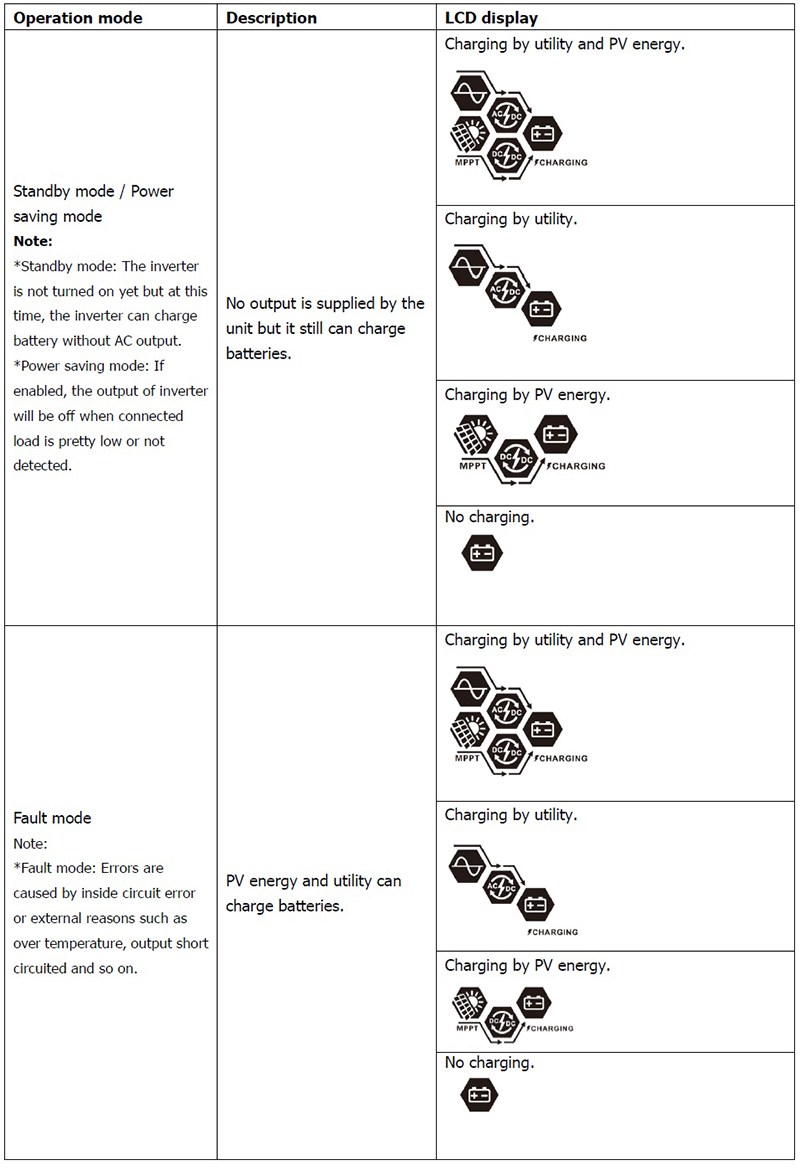

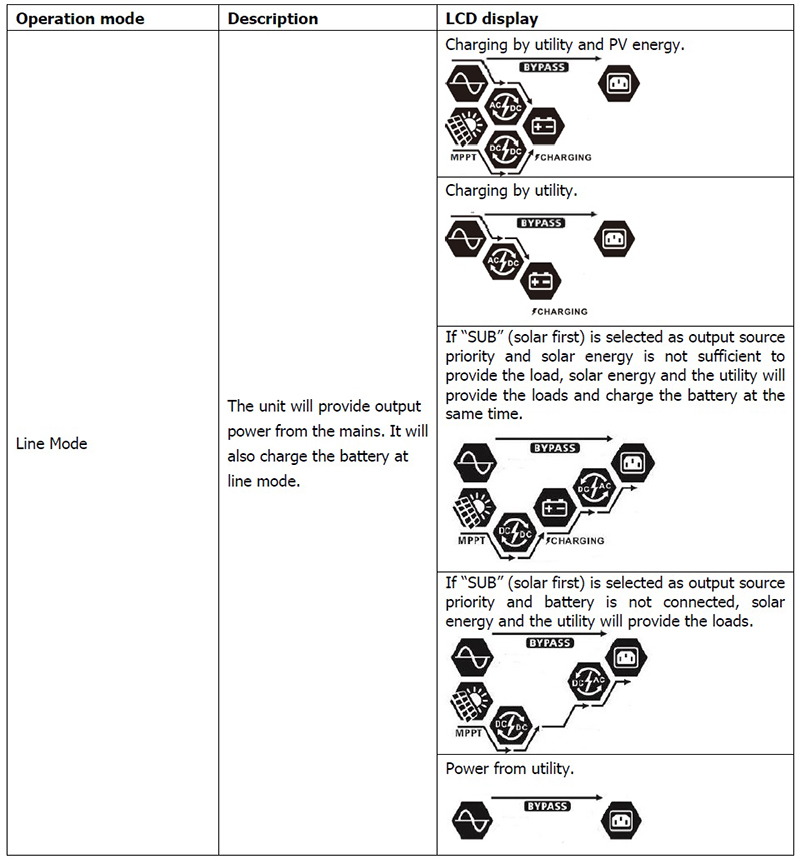

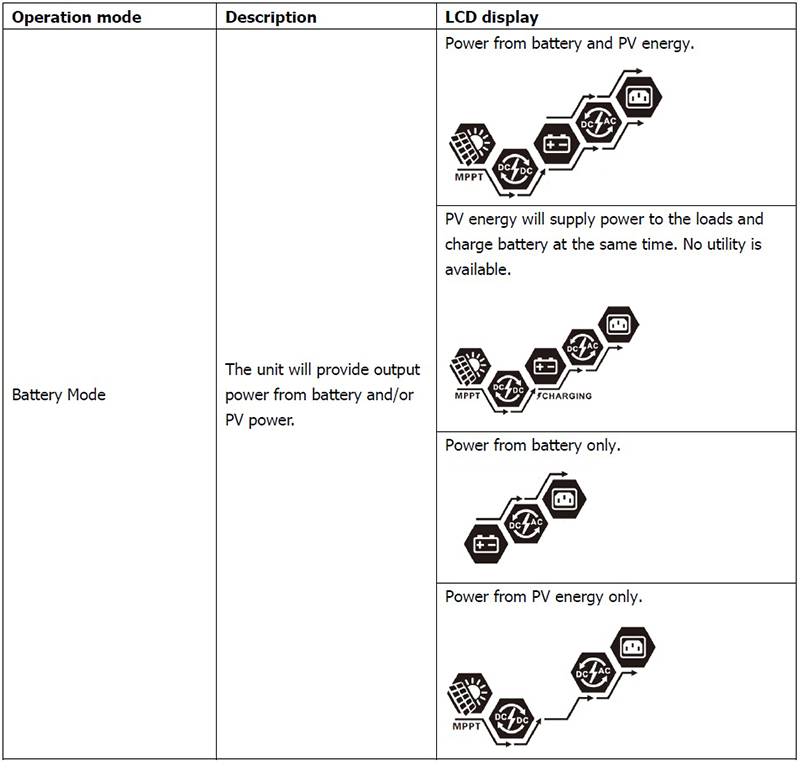

Inverter Operation Modes
Inverter Package
5000W Inverter Specification
| Model | PSM-5K VMIII |
| PHASE | 1-phase in/1-phase out |
| RATED POWER | 5000VA/5000W |
| Parallel Capability | No |
| Dimension DxWxH (mm) | 115x300x400 |
| Net Weight (kgs) | 10.00 |
| INPUT | |
| Voltage | 220VAC/230VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 220VAC/230VAC ± 5% |
| Frequency | 50 Hz/60 Hz |
| Surge Power | 10000VA |
| Efficiency (Peak) | 90% - 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 5000W |
| MPPT Operating Voltage Range | 120 - 450VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 80A |
| Maximum MPPT Charging Efficiency | 98% |
| Standby Power Consumption | 2 W |
| OPERATING ENVIRONMENT | |
| IP Class | IP20 |
| Communication Interface | USB/RS232/RS485/Bluetooth/Dry Contact |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 60°C |
