24v 2000 watt pure sine wave inverter

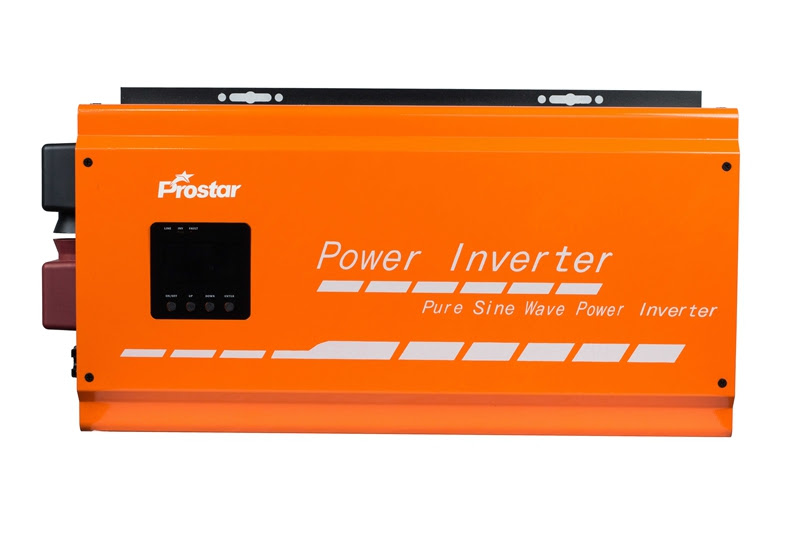

Prostar PIL2K low frequency 24v dc to ac 2000 watt pure sine wave inverter does not produce any power, the power is provided by the DC source. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, input/output voltage and frequency, and acceptable input voltage based on different applications.

The inverter is built-in smart battery charger allows for you to use your existing grid power to maintain a charge on your batteries.

Prostar 24v dc to ac 2000 watt pure sine wave inverter is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50 or 60 hz.

Low frequency 24v dc to ac 2000 watt pure sine wave inverter is great for your emergency battery backup for when the grid goes down with an unnoticeable transfer time of 8 milliseconds, or for use as a standalone off-grid system.

2000 Watt Pure Sine Wave Inverter FeaturesFeatures & Benefits

1. Advanced all-digital control

Power Inverter with CPU control, all the operational parameters of Inverters are controlled by the CPU, ensuring the Inverter is in the best working condition. Improved the accuracy of the product parameter, ensured full compliance of product performance, the product failure rate effectively reduce.

2. Intelligent Charger

Built-in smart charger, with TOP charge type (charging type of high current at the initial, and balanced type and floating type alternating charging), shorten the battery charging time, extend the battery life, and it is suit to the areas of high rate power cut.

3. Wide input voltage range (110V-300V)

Interactive structural design, low frequency type program, with superior shock resistance. To satisfy the demand for different type of load, this might be widely used in household, commercial, industrial, outdoor base station.

4. Special Protection method

7000 Series takes muti-level protection mode of output, which could resisit the impact effectively, and also with the short circuit protection function, which could enhance its reliability.

5. Well unattended function

When the main power is abnormal, the battery will supply power instead till low-voltage appeared, and then UPS shut down; when the main power come back, the UPS will start working automatically, and it will charge for the battery at the same time. No need to turn on the UPS manually.

6. High Efficiency and Energy Saving

When AC power is normal, the inverter is under dormant status, the main power through the built-in voltage regulator (AVR) directly to supply power to the loads, and its efficiency is as high as 98%. Therefore it is called “Green UPS” which in full compliance with the spirit of low carton.

7. Auto restar while AC is recoving

8. Excellent microprocessor control guarantees high reliablility

9. Boost and buck AVR for voltage stabilization

10. Cold start function

11. LCD panel for comprehensive display

You can clear see some parameters on LCD, like input/output voltage, frequency, charging voltage, charging current, etc.

12. Adjustable charging voltage and charging current

You can choose different charging voltage (13.0v – 14.2V) and different chargig current (12A – 60A) for different type batteries to guarantee the battery lifetime.

 System Structure

Power Inverter connect to Solar Power

A typical power inverter device or circuit requires a relatively stable DC power source capable of supplying enough current for the intended power demands of the system. The input voltage depends on the design and purpose of the inverter. Examples include:

• 12 V DC, for smaller consumer and commercial inverters that typically run from a rechargeable 12 V lead acid battery or automotive electrical outlet.
• 24, 36 and 48 V DC, which are common standards for home energy systems.

2000w Pure Sine Wave Inverter Details



Power Inverter Packing

Data

Model		PIL2K-24
Rated Power		2000W
INPUT
Voltage Range		100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-25%)
Frequency Range		50/60 Hz±2.5Hz Auto
OUTPUT
AC Voltage Regulation		100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%）
Frequency		50Hz/60Hz±0.5Hz Auto（AC Mode±2.5Hz）
Power Factor		1.0
Surge Power		6000W
Capable Of Starting Electric Motor		2HP
Battery Efficiency		85%
AC Efficiency		93%
Transfer Time		8ms default, 4ms optional
Waveform		Pure Sinewave
BATTERY
Battery Voltage		24VDC
Floating Charge Voltage		27.2VDC
Overcharge Protection		30.0VDC
AC Charge Current		12A-60A Adjustable (60A default)
PROTECTION
Battery Reversal		Optional
Output Short Circuit		AC mode:Jump fuse, Inverter mode: Shut down
Overload		Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
High AC Voltage		Turn off AC,turn to Inverter mode automatically
Low DC Voltage		Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
Over Temperature		Power Off
ENVIRONMENT
Humidity		15～93%（No condensation）
Temperature		-10℃ ~ 50℃
Altitude		≤3000m
Communication		USB, RS232/485, SNMP (Optional)
MECHANICAL SPECIFICATIONS
Dimension, DxWxH (mm)		550x295x205
Net Weight (Kgs/PC)		19.2
Product specifications are subject to change without further notice.
