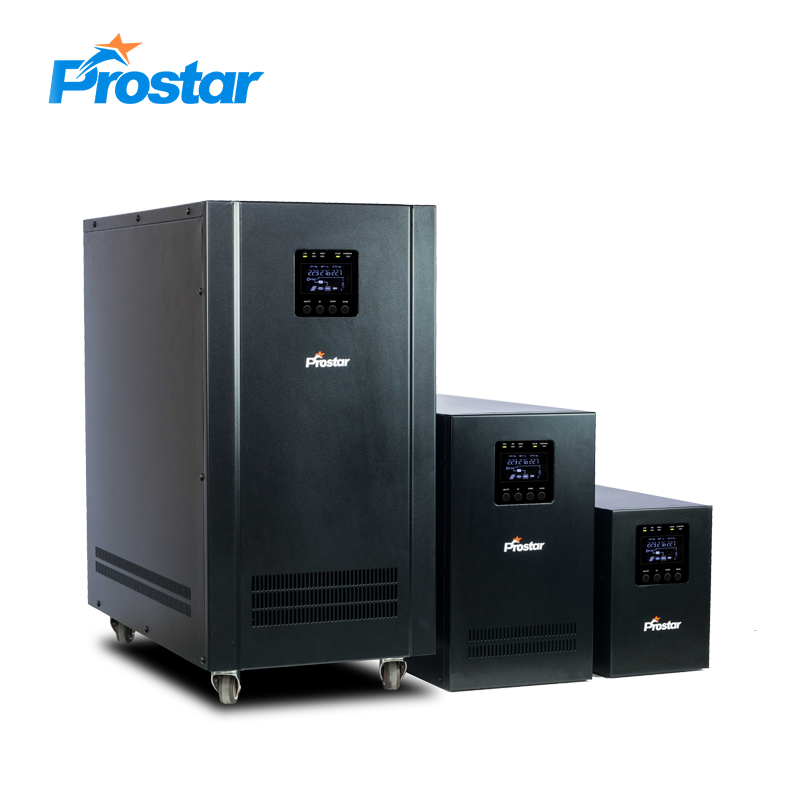

PST1.5K pure sine wave off grid solar dc to ac 1500w inverter 24v is a pure sine wave inverter providing a cost-effective solution for off-grid living, backup power and self-consumption applications.
The inverter is combining functions of inverter, pwm solar charger and battery charger to offer uninterruptible power supply. This inverter can power all kind of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator or air conditioner.
Pure sine wave 1500w inverter delivers higher quality power output, similar to the power grid. Power saving feature to bypass charging from grid to save on electricity bills.
Off grid 1500W Inverter Features
- Pure sine wave output
- Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
- Builtin PWM 20A solar charge controller
- New SUB working mode(Solar-Utility-Battery working mode)
- Overload, short circuit and Deep discharge protection
- Built-in isolated transformer
- Uninterruptible power supply in case of grid black-out
- Intelligent AC and PV complementary power supply function to extend the battery life
- Configurable battery charging current or voltage based on applications via LCD setting
- Cold start function(starting with only battery power and no AC source or PV modules attached)
- Compatible to generator
Solar System Structure
Inverter Working Modes Choice
There are 4 working modes for users to choose, which is best for its using:
- Regular mode
- Solar energy PRIORITY mode
- Energy storage PRIORITY mode
- Energy saving mode

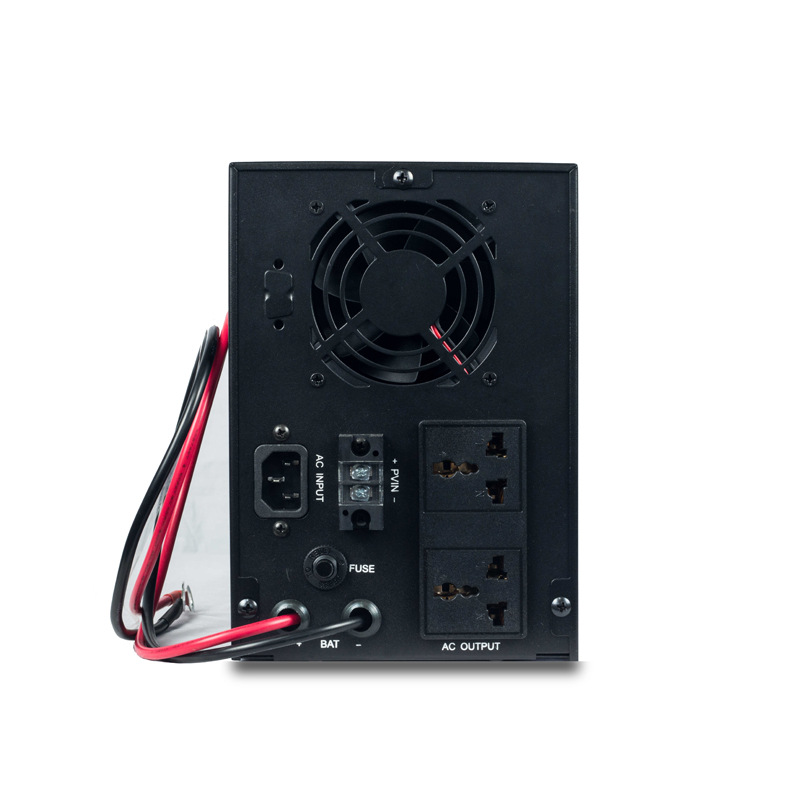

1500W Inverter Details
1500w inverter Specification
| Model | PST1.5K | ||||||||||
| Rated Power | 1500W | ||||||||||
| INPUT | |||||||||||
| Voltage Range | 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%) | ||||||||||
| Frequency Range | 50/60 Hz±2.5Hz Auto | ||||||||||
| OUTPUT | |||||||||||
| AC Voltage Regulation | 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%） | ||||||||||
| Frequency | 50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ） | ||||||||||
| Surge Power | 4500W | ||||||||||
| Battery Efficiency | 83% | ||||||||||
| AC Efficiency | 93% | ||||||||||
| Transfer Time | 8ms default, 4ms optional | ||||||||||
| Waveform | Pure Sinewave | ||||||||||
| BATTERY | |||||||||||
| Battery Voltage | 24VDC | ||||||||||
| Floating Charge Voltage | 27.2VDC | ||||||||||
| Overcharge Protection | 30.0VDC | ||||||||||
| SOLAR CHARGER & AC CHARGER | |||||||||||
| Max. PV Array Power | 480W | ||||||||||
| PV Input Voltage Range | 20VDC – 50VDC | ||||||||||
| Max. Solar Charge Current | 20A | ||||||||||
| AC Charge Current | 0A-20A Adjustable | ||||||||||
| PROTECTION | |||||||||||
| Battery Reversal | Optional | ||||||||||
| Output Short Circuit | AC mode:Jump fuse, Inverter mode: Shut down | ||||||||||
| Overload | Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output. | ||||||||||
| High AC Voltage | Turn off AC,turn to Inverter mode automatically | ||||||||||
| Low DC Voltage | Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically | ||||||||||
| Over Temperature | Power Off | ||||||||||
| ENVIRONMENT | |||||||||||
| Humidity | 15～93%（No condensation） | ||||||||||
| Temperature | -10℃ ~ 50℃ | ||||||||||
| Altitude | ≤3000m | ||||||||||
| Communication | USB,RS232, RS485,SNMP (Optional) | ||||||||||
| MECHANICAL SPECIFICATIONS | |||||||||||
| Dimension, DxWxH (mm) | 381x142x210 | ||||||||||
| Net Weight (Kgs/PC) | 17 | ||||||||||
| Shipping Dimensions, DxWxH (mm) | 490x485x335(2pcs/Carton） | ||||||||||
| Gross Weight(Kgs/PC） | 18 | ||||||||||
