low frequency dc to ac 1000w power inverter with charger

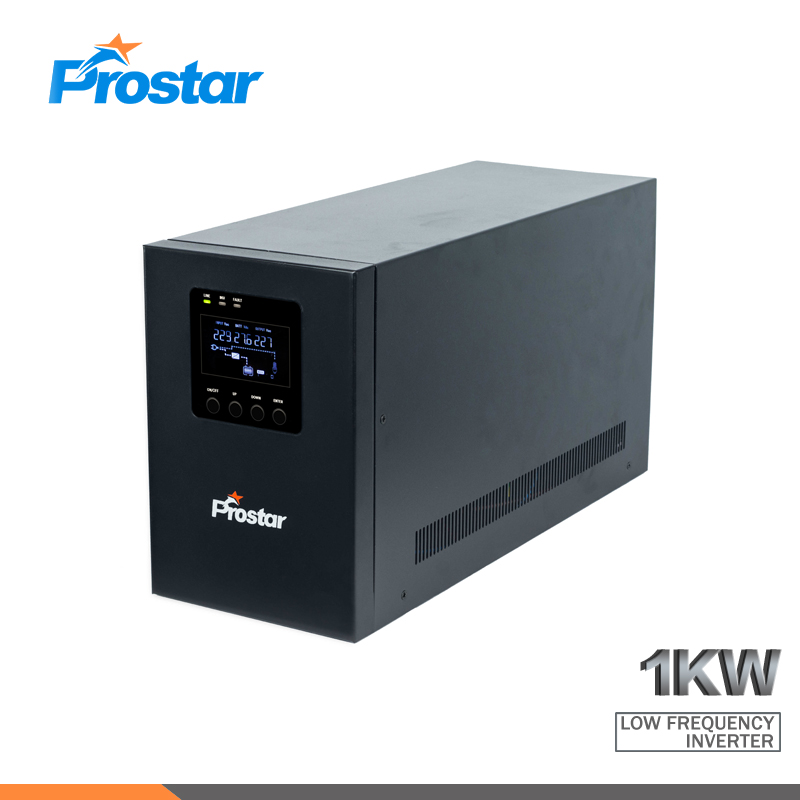

Prostar PIH1K low frequency dc to ac 1000w power inverter with charger | Guangdong Prostar New Energy Technology Co., Ltd.: Prostar dc to ac 1000w power inverter with charger is built-in isolation transformer to make higher ability to engage in short circuit current.

Prostar PIH1K low frequency dc to ac 1000w power inverter with charger converts your battery power, so you can power up a food processor, blender, small refrigerator, and even many large flat-screen TVs. Whether you're finishing some work on the road or blending up beverages at a tailgate party, you'll have all the power you need.

Prostar PIH1K low frequency dc to ac 1000w power inverter with charger is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50Hz or 60Hz. This power supply inverter is built-in isolation transformer to make this product with higher ability to engage in short circuit current.

Power inverter is primarily used in electrical power applications where high currents and voltages are present; circuits that perform the same function for electronic signals, which usually have very low currents and voltages, are called oscillators.

Pure sine wave inverter built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

Inverter Specification

Model	PIH1K-12	PIH1K-24
Rated Power	1000W
INPUT
Voltage Range	100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
Frequency Range	50/60 Hz±2.5Hz Auto
OUTPUT
AC Voltage Regulation	100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%）
Frequency	50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ）
Surge Power	3000W
Battery Efficiency	81%
AC Efficiency	93%
Transfer Time	8ms default, 4ms optional
Waveform	Pure Sinewave
BATTERY
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.6VDC	27.2VDC
Overcharge Protection	15.0VDC	30.0VDC
AC Charge Current	4-20A Adjustable (20A default)
PROTECTION
Battery Reversal	Optional
Output Short Circuit	AC mode:Jump fuse, Inverter mode: Shut down
Overload	Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
High AC Voltage	Turn off AC,turn to Inverter mode automatically
Low DC Voltage	Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
Over Temperature	Power Off
ENVIRONMENT
Humidity	15～93%（No condensation）
Temperature	-10℃ ~ 50℃
Altitude	≤3000m
Communication	USB, RS232, 485, SNMP (Optional)
MECHANICAL SPECIFICATIONS
Dimension, DxWxH (mm)	381142209
Net Weight (Kgs/PC)	12.00
